How to maintain your Pure Crystal

How to maintain your Pure Crystal > Pure Crystal Cage for Puppy and Kittens / Pure Crystal Cage PRO for Puppy and Kittens

Pure Crystal Cage for Puppy and Kittens / Pure Crystal Cage PRO for Puppy and Kittens

* Pictures used show Pure Crystal Cage for Puppy model

How to maintain

Remove top funnel

Remove filter media

Remove filter tray

If top funnel is difficult to remove

Remove entire filter tray as shown in picture, then push out top funnel by pushing its end

* Be careful of water spills and top funnel and filter fallling apart.

Remove cord with
pump from base tank

* Pure Crystal PRO doesn't include the protection cord cover.

Rinse and clean

Rinse top funnel, filter tray, base tank and cord cover with water. If you cannot clean off thoroughly, cleanse with mild detergent using sponge.

* Do not use cleansers. Rinse thoroughly.

How to maintain filter

Rinse filter surface with running water. Make sure not to use detergent.

* Replace filter media approximately once a month or when the filter is contaminated with left over food and hair.

How to maintain pump

Remove pump from base tank

Remove outlet pipe

* Rinse outlet pipe and brush thoroughly with water.

Remove pump cover

Remove impeller cover

How to remove pump cover

Remove pump cover by holding pump as illustration and add pressure in the direction of arrows.

Pump structure

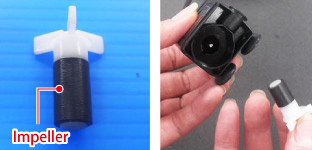

Remove impeller

Rinse top funnel, filter tray, base tan, cord cover with water. If cannot clean off thoroughly, cleanse with mild detergent.

* Do not use cleansers. Rinse thoroughly.

Rinse impeller

Rinse impeller and clean inside of pump with cotton swab.

Impeller not clean	Residue impeller caught

*Impeller will not function properly if impeller is contaminated with hair and left over food.

If impeller cannot revolve, it will become locked and stop the water flow. Be sure to maintain the impeller once a month.

* The impeller magnet will become weak after long usage which will diminsh the pump power.
We recommend the pump to be replaced once a year.
* Kindly contact your nearest store for replacement pump which is sold separately.

After maintenance is finished,
reverse procedure to re-set the unit.

Attention

	If the AC adaptor or pump cord is difficult to put through the protection tube due to its curve, please straighten the tube as below illustration.



	Warm the protection tube by soaking in luke warm water (30～40℃）and straighten the tube.
