How to maintain your Pure Crystal

How to maintain your Pure Crystal > Pure Crystal Cage for Puppy and Kittens / Pure Crystal Cage PRO for Puppy and Kittens

Pure Crystal Cage for Puppy and Kittens / Pure Crystal Cage PRO for Puppy and Kittens

* Pictures used show Pure Crystal Cage for Puppy model
  • UnitUnit
  • Replacement FilterReplacement Filter
  • PumpPump

How to maintain

1 Remove top funnel

Remove top funnel
2 Remove filter media

Remove filter media
3 Remove filter tray

Remove filter tray
4 Remove cord cover from base tank in the direction of the arrow in the picture

Remove cord cover from base tank in the direction of the arrow in the picture
5 Remove cord with pump from base tank

Remove cord with pump from base tank

If top funnel is difficult to remove

If top funnel is difficult to remove
Remove entire filter tray as shown in picture, then push out top funnel by pushing its end.
* Be careful of water spills and top funnel and filter fallling apart.
6 Rinse and clean

Rinse top funnel, filter tray, base tank and cord cover with water. If you cannot clean off thoroughly, cleanse with mild detergent using sponge.

* Do not use cleansers. Rinse thoroughly.

How to maintain filter

How to maintain filter
Rinse filter surface with running water. Make sure not to use detergent.

* Replace filter media approximately once a month or when the filter is contaminated with left over food and hair.

* Filter may be seen in pink due to the germs existing in natural environment. We strongly advise filter and unit to be maintained thoroughly and water to be exchanged frequently under hot summer climates.

How to maintain pump

1 Remove pump from base tank

Remove pump from base tank
2 Remove outlet pipe

Remove outlet pipe
* Rinse outlet pipe and brush thoroughly with water.
* Rinse outlet pipe and brush thoroughly with water.
3 Remove pump cover

Remove pump cover
4 Remove impeller cover

Remove impeller cover

How to remove pump cover

How to remove pump cover
Remove pump cover by holding pump as illustration and add pressure in the direction of arrows.

Pump structure

Pump structure

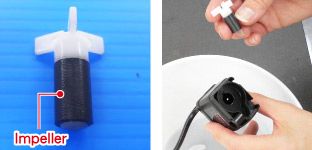

5 Remove impeller

Remove impeller
6 Rinse impeller

Rinse impeller
Rinse impeller and clean inside of pump with cotton swab.

Impeller not clean

Residue impeller caught

Impeller not clean Residue impeller caught
*Impeller will not function properly if impeller is contaminated with hair and left over food.
If impeller cannot revolve, it will become locked and stop the water flow. Be sure to maintain the impeller once a month.

* The impeller magnet will become weak after long usage which will diminsh the pump power.
  We recommend the pump to be replaced once a year.
* Kindly contact your nearest store for replacement of pump which is sold separately.
After maintenance is finished,
reverse procedure to re-set the unit.
Attention

  If the AC adaptor or pump cord is difficult to put through the protection tube due to its curve, please straighten the tube as below illustration.

    If the AC adaptor or pump cord is difficult to put through the protection tube due to its curve, please straighten the tube as below illustration.   If the AC adaptor or pump cord is difficult to put through the protection tube due to its curve, please straighten the tube as below illustration.


Warm the protection tube by soaking in luke warm water (30~40℃)and straighten the tube.

イオン交換樹脂ってなに?

イオン交換樹脂とは、非常に小さい粒状の合成樹脂です。 大きく分けて陽イオン交換樹脂と陰イオン交換樹脂の2つがあります。ピュアクリスタルの軟水化フィルターで使っているのは、陽イオン交換樹脂です。

カルシウムイオンや、マグネシウムイオンなどの陽イオンを含む水が陽イオン交換樹脂に接触すると軟水となります。おもな用途としては、イオン交換水の製造、海水の飲料水化、科学工業での精製などに使われています。

イオン交換樹脂

軟水ってなに?

水は硬度によって『硬水』と『軟水』に区分されます。

硬度とは、水中に溶けているカルシウムイオンとマグネシウムイオンの量で決まります。 一般的に軟水・硬水と呼ばれているのは、この硬度の数値のことです。そして硬度分を多く含んだ水を「硬水」、その反対を「軟水」と呼んでいます。

カルシウムイオンとマグネシウムイオンの量

カルシウムイオンとマグネシウムイオンの量

測定実験データ

軟水化が完了するまでの速度は、約60分!

マグネシウム、カルシウムの含有量測定
測定方法
軟水化フィルターをセットし、水を循環させ水の全硬度を測定
(全硬度45ppm 水温25℃)
※全硬度とは水中に含まれるマグネシウム、カルシウムの量を数値化したものです。

測定実験データ

ピュアクリスタルを使えば水質汚濁が40%減!

水の汚れ測定(TOC:有機体炭素量)

水道水のマグネシウム(Mg)、カルシウム(Ca)を除去してネコちゃんにやさしい水分補給。気になる下部尿路の健康維持におすすめです。フィルター2個入りで約2ヶ月間ご使用いただけます。

測定方法
水道水にドッグフードと犬の毛を入れ、水中に含まれる有機物の炭素量で水質汚濁を測定
